Freeze Drying Equipment
Contents on page
Freeze Dryer
| Model (Manufacturer) |
VD-800R (TAITEC) |
| Features and Specifications, etc. | Prior to initial use, it is necessary to undergo training.Please contact the following personnel for assistance: Equipment for lyophilization of protein and other samples 【Specifications】 - 6-port manifold installed - Cooling temperature: -75°C (without load, 5°C to 35°C environment) - Trap capacity: approx. 2000 ml/trip - Chamber internal volume: approx. 11.7L (inner diameter φ210 x 345mm) - Vacuum gauge: Pirani vacuum gauge (digital display) - Refrigerator: 400W x 2 (dual refrigeration system) - Other features: Trap defrosting function by hot gas available - Vacuum pump: GCD-136X oil rotary type (Achievable vacuum: 0.67Pa, displacement: 135L/min) Freeze-drying bottle (next to equipment) - 2 x 300 mL - 2 x 500 mL - 2 x 750 mL - 4 x 1000 mL - 2 x 1200 mL (Number of pickup possibilities: Maximum 2 pcs) Installed in September 2023 |
| Precautions for Use | - This instrument is designed to remove "water" from frozen samples. Samples containing acids or organic solvents (including alcohols) are prohibited as they can cause vacuum pump failure. |
| Location | 8th floor corridor, University Building 1 |
| Remarks | - Prior to the initial use, it is necessary to undergo training. Please contact the following personnel for assistance: - Please ensure to book this equipment through the reservation system when using it. - When using the equipment, please be sure to fill out the logbook provided with it. |
| Equipment Manager Extension Number |
Tsukamoto (Laboratory for Proteins and Genes) 9928 |
| Usage Fee | 100 yen/hour |

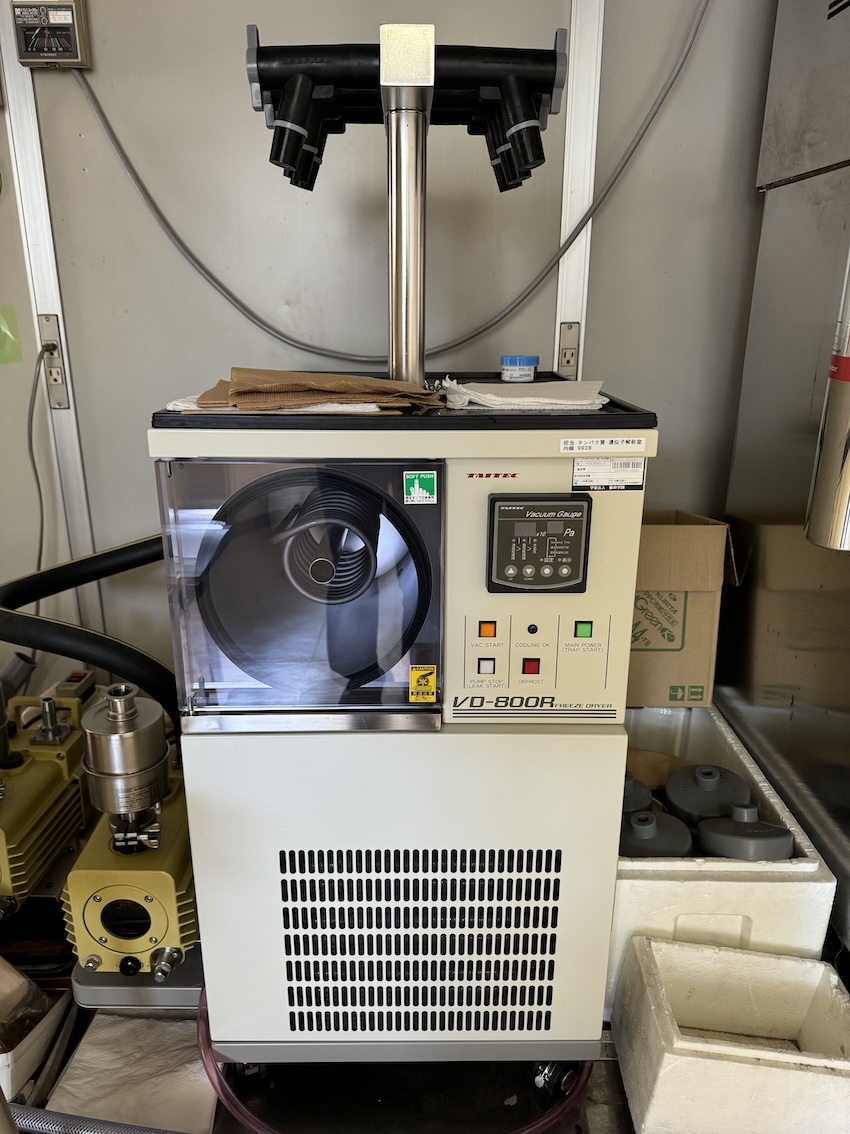

Equipment Photo
