PCR equipment
PCR equipment
| Model (Manufacturer) |

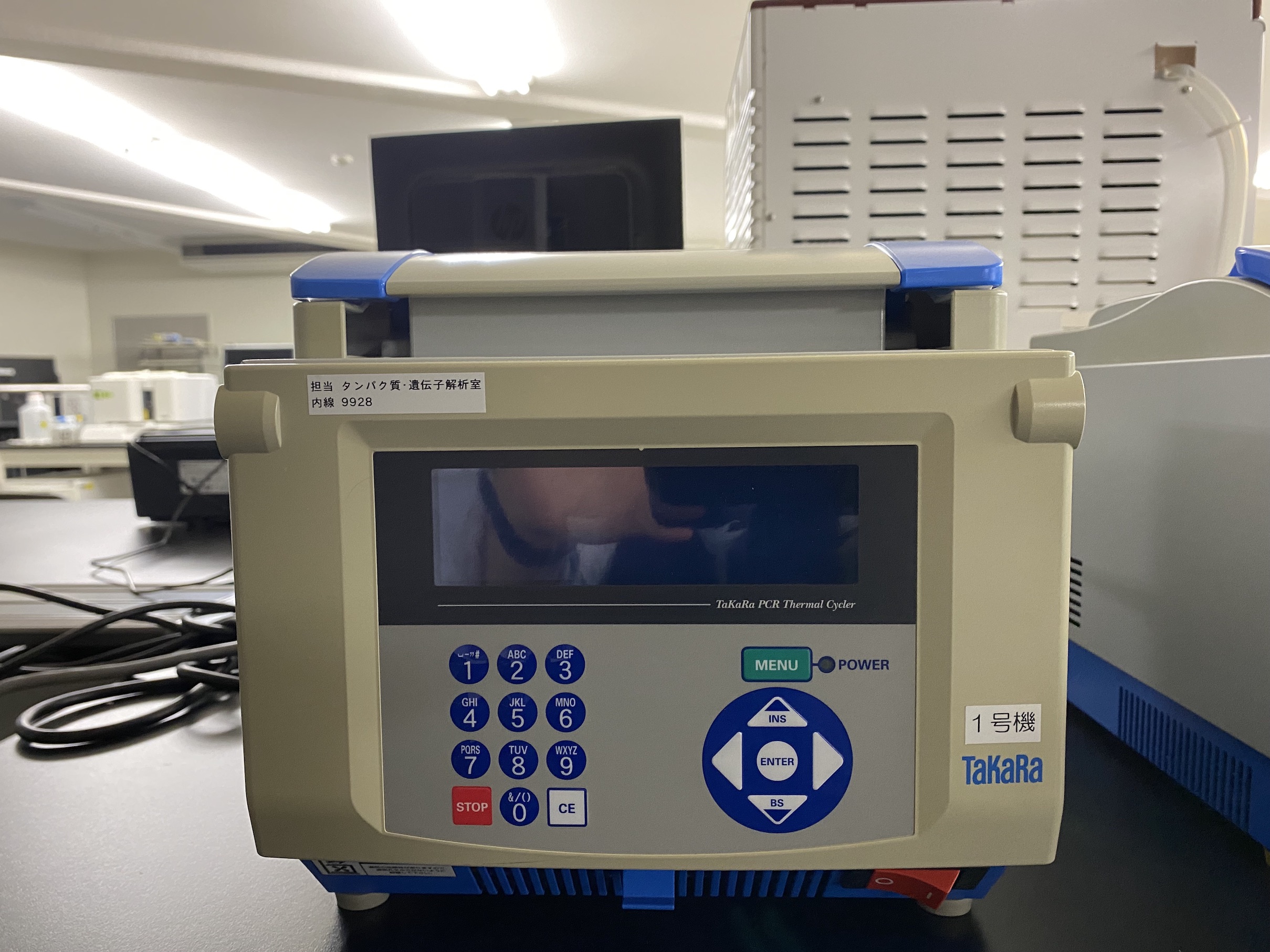

PCR Dice Unit 1 (TaKaRa) |
| Features and Specifications, etc. | Device that automatically performs PCR cycles to amplify DNA. 【Features】 - Capable of setting either 96 tubes of 0.2 ml each or one 96-well tube plate. - Equipped with a gradient function. 【Specifications】 - Heating and cooling method: Peltier element. - Heating rate: Maximum 3.0 ℃per second. - Cooling rate: Maximum 2.0 ℃ per second. - Temperature setting range: 4 to 99.9 ℃ (in 0.1 ℃ increments) . - Heat lid: 110 ℃ - Gradient function: Adjustable range: 40 to 75 ℃ (temperature span: 6 to 20 ℃). |
| Location | Central Research Center (Room 317, 3rd floor, University Building 1) |
| Remarks | - Please ensure to book this equipment through the reservation system when using it. - When using the equipment, please be sure to fill out the logbook provided with it. |
| Equipment Manager Extension Number |
Tsukamoto (Laboratory for Proteins and Genes) 9928 |
| Usage Fee | 100 yen/run |
Equipment Photo
PCR equipment
| Model (Manufacturer) |

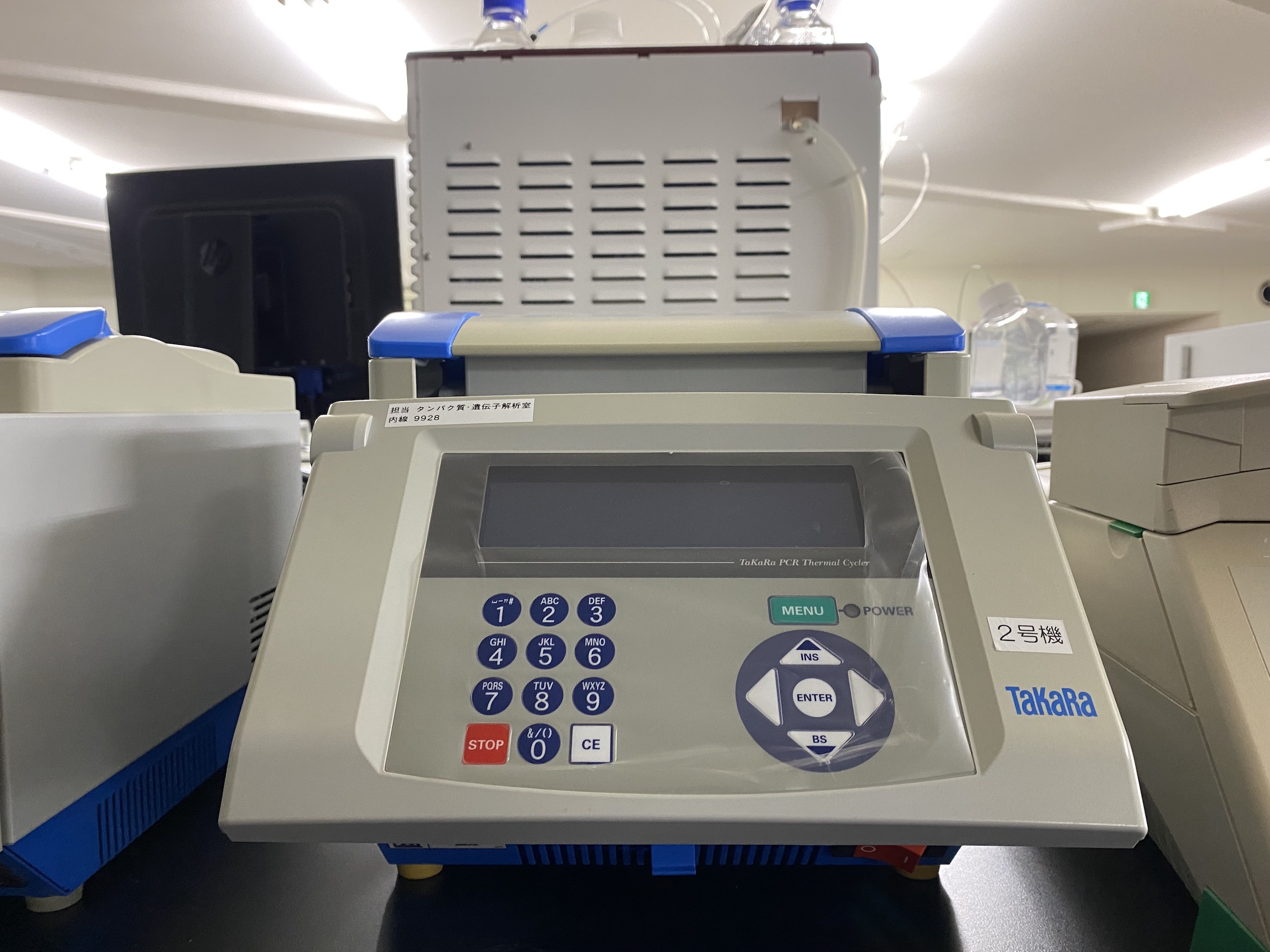

PCR Dice Unit 2 (TaKaRa) |
| Features and Specifications, etc. | Device that automatically performs PCR cycles to amplify DNA. 【Features】 - Capable of setting either 96 tubes of 0.2 ml each or one 96-well tube plate. - Equipped with a gradient function. 【Specifications】 - Heating and cooling method: Peltier element. - Heating rate: Maximum 3.0 ℃ per second. - Cooling rate: Maximum 2.0 ℃ per second. - Temperature setting range: 4 to 99.9 ℃ (in 0.1 ℃ increments) . - Heat lid: 110 ℃. - Gradient function: Adjustable range: 40 to 75 ℃ (temperature span: 6 to 20 ℃). |
| Location | Central Research Center (Room 317, 3rd floor, University Building 1) |
| Remarks | - Please ensure to book this equipment through the reservation system when using it. - When using the equipment, please be sure to fill out the logbook provided with it. |
| Equipment Manager Extension Number |
Tsukamoto (Laboratory for Proteins and Genes) 9928 |
| Usage Fee | 100 yen/run |
Equipment Photo
PCR equipment
| Model (Manufacturer) |

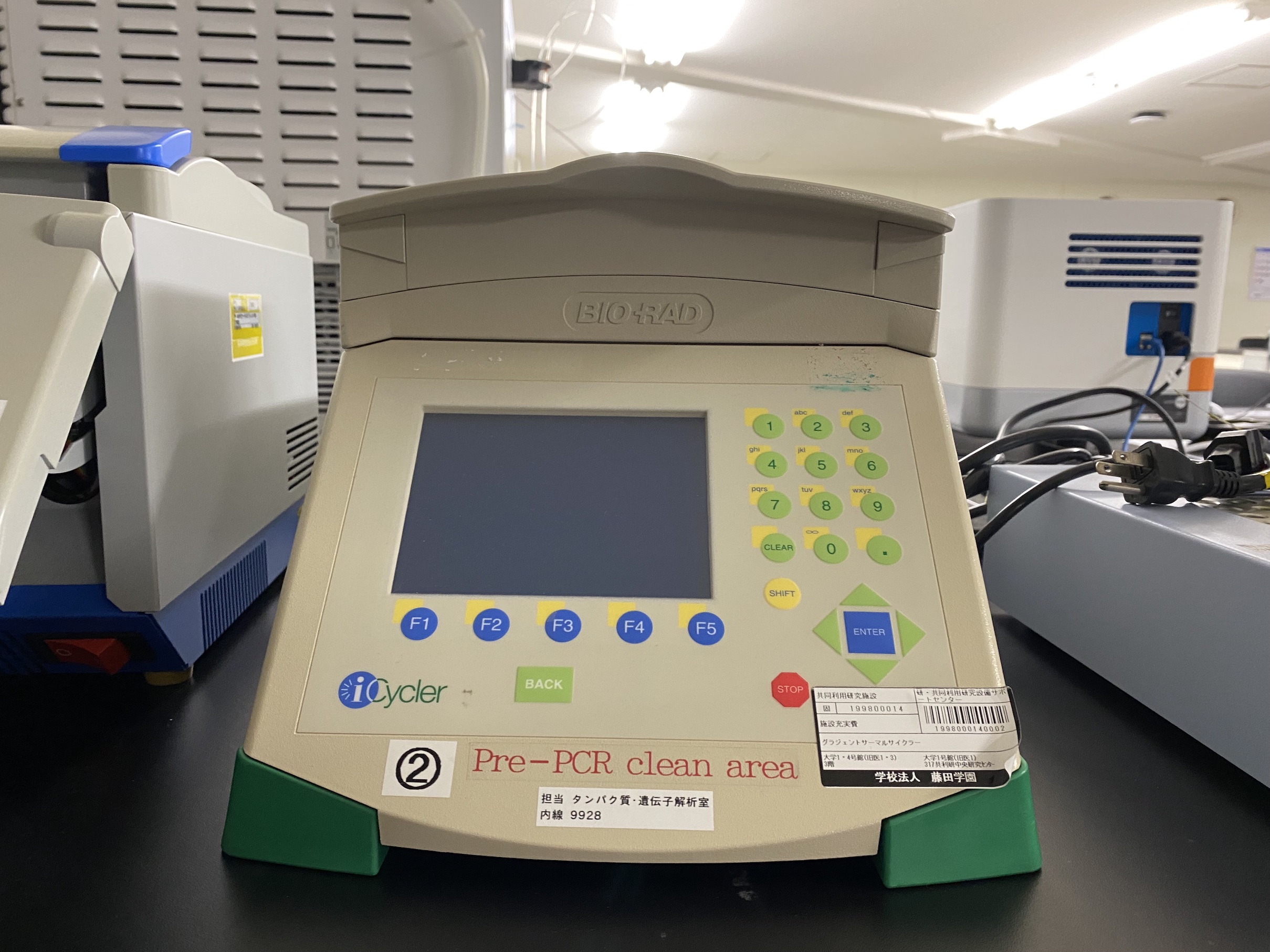

iCycler (BioRad) |
| Features and Specifications, etc. | Device that automatically performs PCR cycles to amplify DNA. 【Features】 - Capable of setting either 96 tubes of 0.2 ml each or one 96-well tube plate. - Equipped with a gradient function. 【Specifications】 - Heating and cooling method: Peltier element. - Heating rate: Maximum 3.3 ℃per second (within the range of 50 to 95 ℃). - Cooling rate: Maximum 2.0 ℃ per second(within the range of 50 to 95 ℃). - Temperature setting range: 4 to 100 ℃ - Gradient function: Adjustable range: 40 to 99 ℃ (recommended temperature span: 5 to 25 ℃). |
| Location | Central Research Center (Room 317, 3rd floor, University Building 1) |
| Remarks | - Please ensure to book this equipment through the reservation system when using it. - When using the equipment, please be sure to fill out the logbook provided with it. |
| Equipment Manager Extension Number |
Tsukamoto (Laboratory for Proteins and Genes) 9928 |
| Usage Fee | 100 yen/run |
Equipment Photo
PCR equipment
| Model (Manufacturer) |

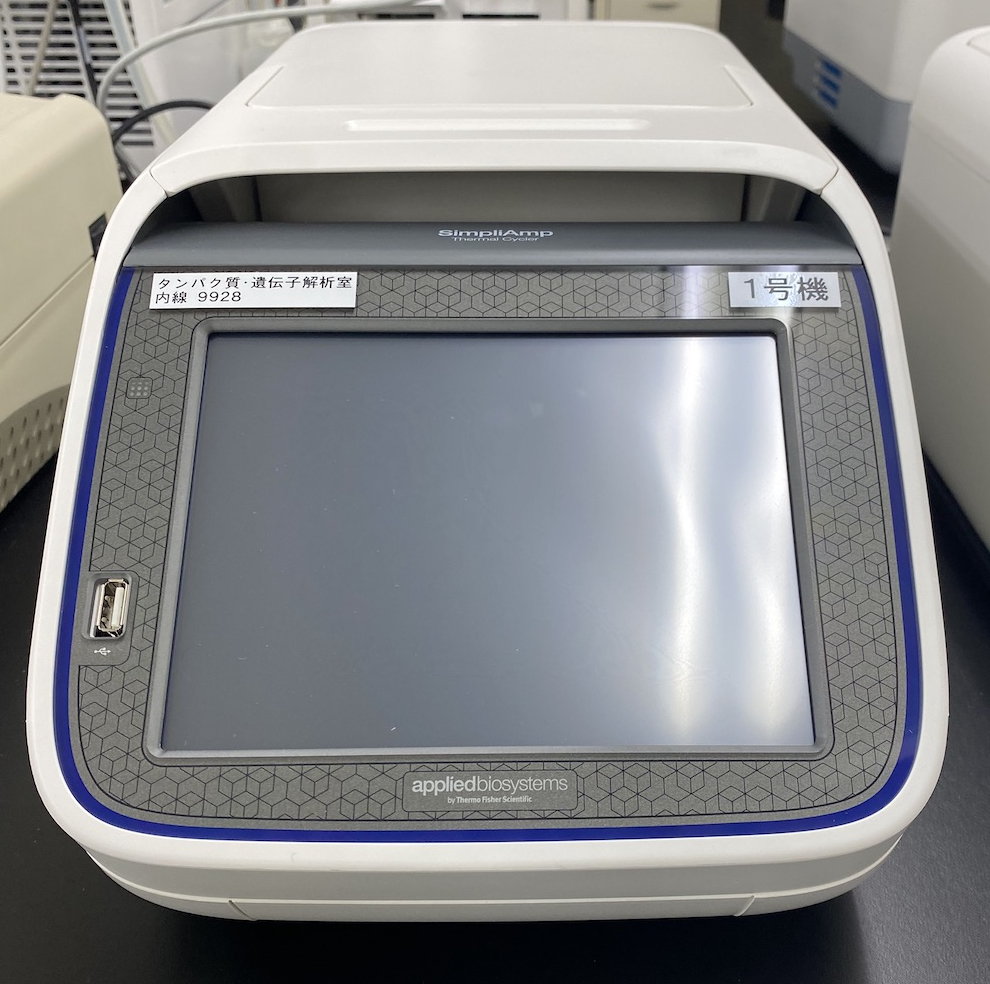

SimpliAmp Unit 1 (ThermoFisher SCIENTIFIC) |
| Features and Specifications, etc. | Device that automatically performs PCR cycles to amplify DNA. 【Features】 - 96 well, 0.2 ml VeriFlex block. - VeriFlex block zones: 3 zones. 【Specifications】 - Temperature transition speed: 3.0 to 4.0 ℃ per second. - Temperature setting range: 0 - 100.0 ℃ - VeriFlex block temperature setting range: maximum 20 ℃ (10 ℃ between adjacent zones), recommended 10 ℃ (5 ℃ between adjacent zones) . |
| Location | Central Research Center (Room 317, 3rd floor, University Building 1) |
| Remarks | - Please ensure to book this equipment through the reservation system when using it. - When using the equipment, please be sure to fill out the logbook provided with it. |
| Equipment Manager Extension Number |
Tsukamoto (Laboratory for Proteins and Genes) 9928 |
| Usage Fee | 100 yen/run |
Equipment Photo
PCR equipment
| Model (Manufacturer) |

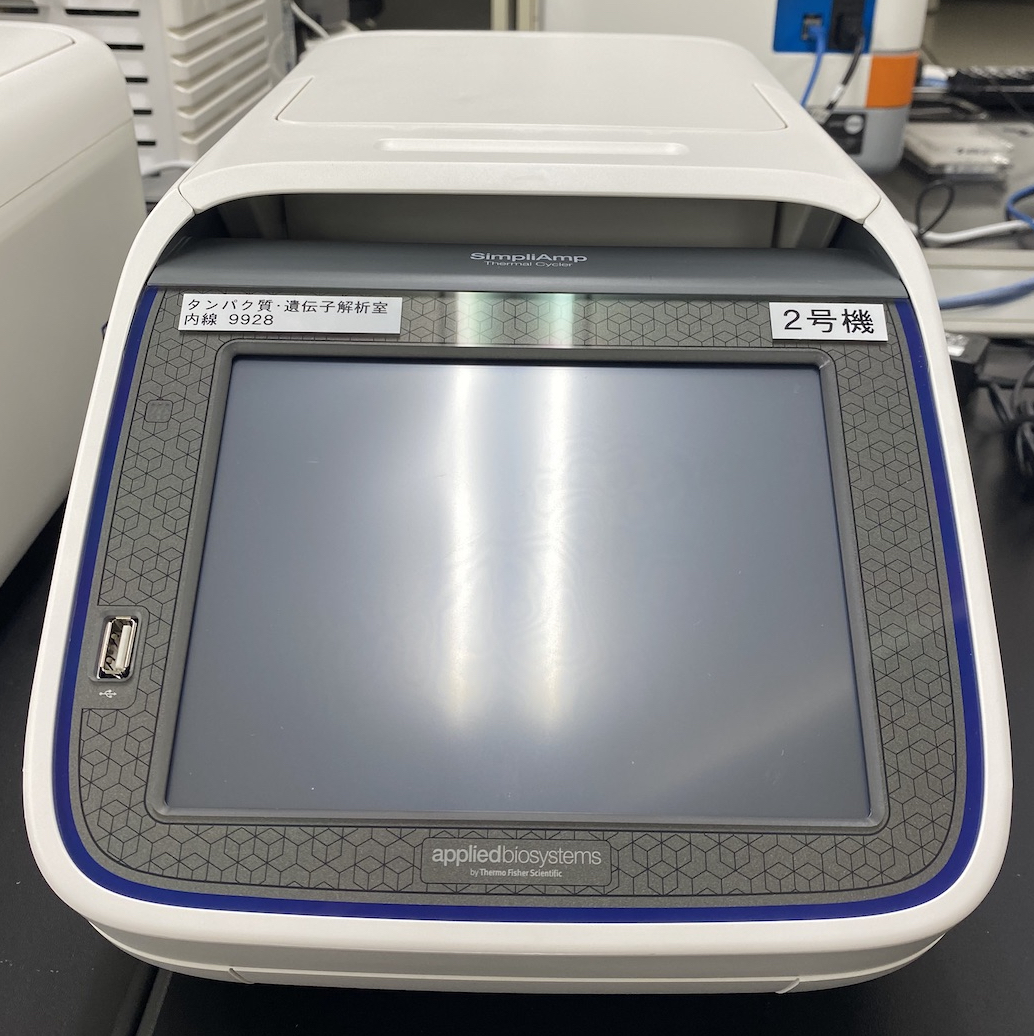

SimpliAmp Unit 2 (ThermoFisher SCIENTIFIC) |
| Features and Specifications, etc. | Device that automatically performs PCR cycles to amplify DNA. 【Features】 - 96 well, 0.2 ml VeriFlex block. - VeriFlex block zones: 3 zones. 【Specifications】 - Temperature transition speed: 3.0 to 4.0 ℃ per second. - Temperature setting range: 0 - 100.0 ℃ - VeriFlex block temperature setting range: maximum 20 ℃ (10 ℃ between adjacent zones), recommended 10 ℃(5 ℃ between adjacent zones) . |
| Location | Central Research Center (Room 317, 3rd floor, University Building 1) |
| Remarks | - Please ensure to book this equipment through the reservation system when using it. - When using the equipment, please be sure to fill out the logbook provided with it. |
| Equipment Manager Extension Number |
Tsukamoto (Laboratory for Proteins and Genes) 9928 |
| Usage Fee | 100 yen/run |
Equipment Photo
Quantitative PCR Equipment
| Model (Manufacturer) |

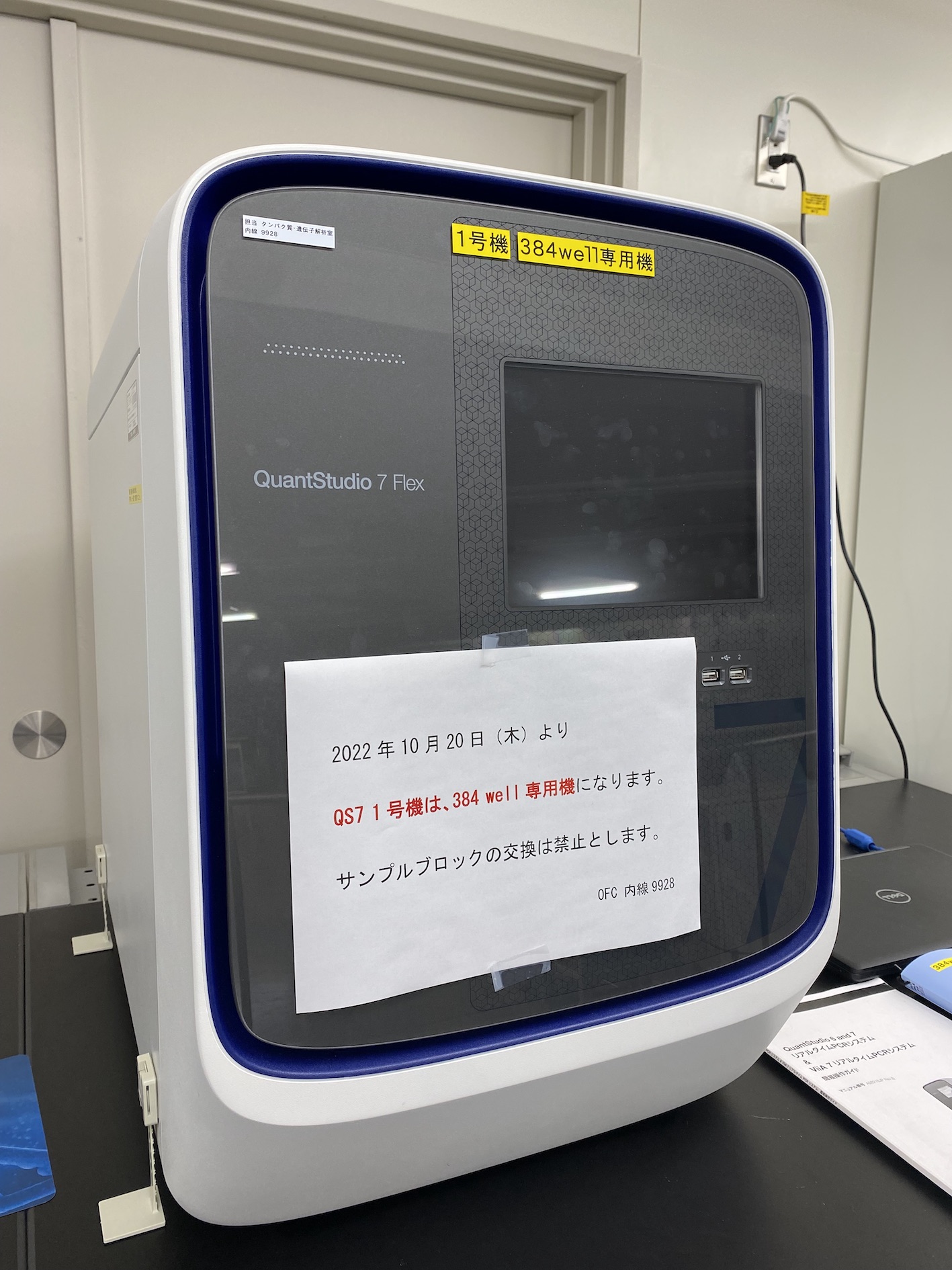

QuantStudio 7 Flex Unit 1 (ThermoFisher SCIENTIFIC) |
| Features and Specifications, etc. | A device for real-time monitoring of DNA amplification by PCR method. 【Features】 - QS7 1 is exclusively for 384-well plates. - It can accommodate one 384-well plate. 【Specifications】 - 384-well block - Light source: Halogen lamp - Excitation at 6 wavelengths (450-670 nm) Emission at 6 wavelengths (500-720 nm) Installed in March 2019. |
| Location | Central Research Center (Room 317, 3rd floor, University Building 1) |
| Remarks | QS7 Unit 1 is exclusively for 384-well plates. If you are using a 96-well plate, please use QuantStudio 7, unit 2. - Please ensure to book this equipment through the reservation system when using it. - When using the equipment, please be sure to fill out the logbook provided with it. |
| Equipment Manager Extension Number |
Tsukamoto (Laboratory for Proteins and Genes) 9928 |
| Usage Fee | 400 yen/run (384-well block) |
Equipment Photo
Quantitative PCR Equipment
| Model (Manufacturer) |
QuantStudio 7 Flex Unit 2 (ThermoFisher SCIENTIFIC) |
| Features and Specifications, etc. | A device for real-time monitoring of DNA amplification by PCR method. 【Features】 - QS7 Unit 2 is exclusively for 96-well plates. - It can accommodate one standard 96-well plate (0.2 ml) . - Fast 96-well plates (0.1 ml) cannot be used. 【Specifications】 - 96-well block - Light source: Halogen lamp - Excitation at 6 wavelengths (450-670 nm) Emission at 6 wavelengths (500-720 nm) Installed in September 2022. |
| Location | Central Research Center (Room 317, 3rd floor, University Building 1) |
| Remarks | QS7 Unit 2 is exclusively for 96-well plates. If you are using a 384-well plate, please use QuantStudio 7, unit 1. - Please ensure to book this equipment through the reservation system when using it. - When using the equipment, please be sure to fill out the logbook provided with it. |
| Equipment Manager Extension Number |
Tsukamoto (Laboratory for Proteins and Genes) 9928 |
| Usage Fee | 200 yen/run (96-well block) |
Equipment Photo
Digital PCR Equipment
| Model (Manufacturer) |

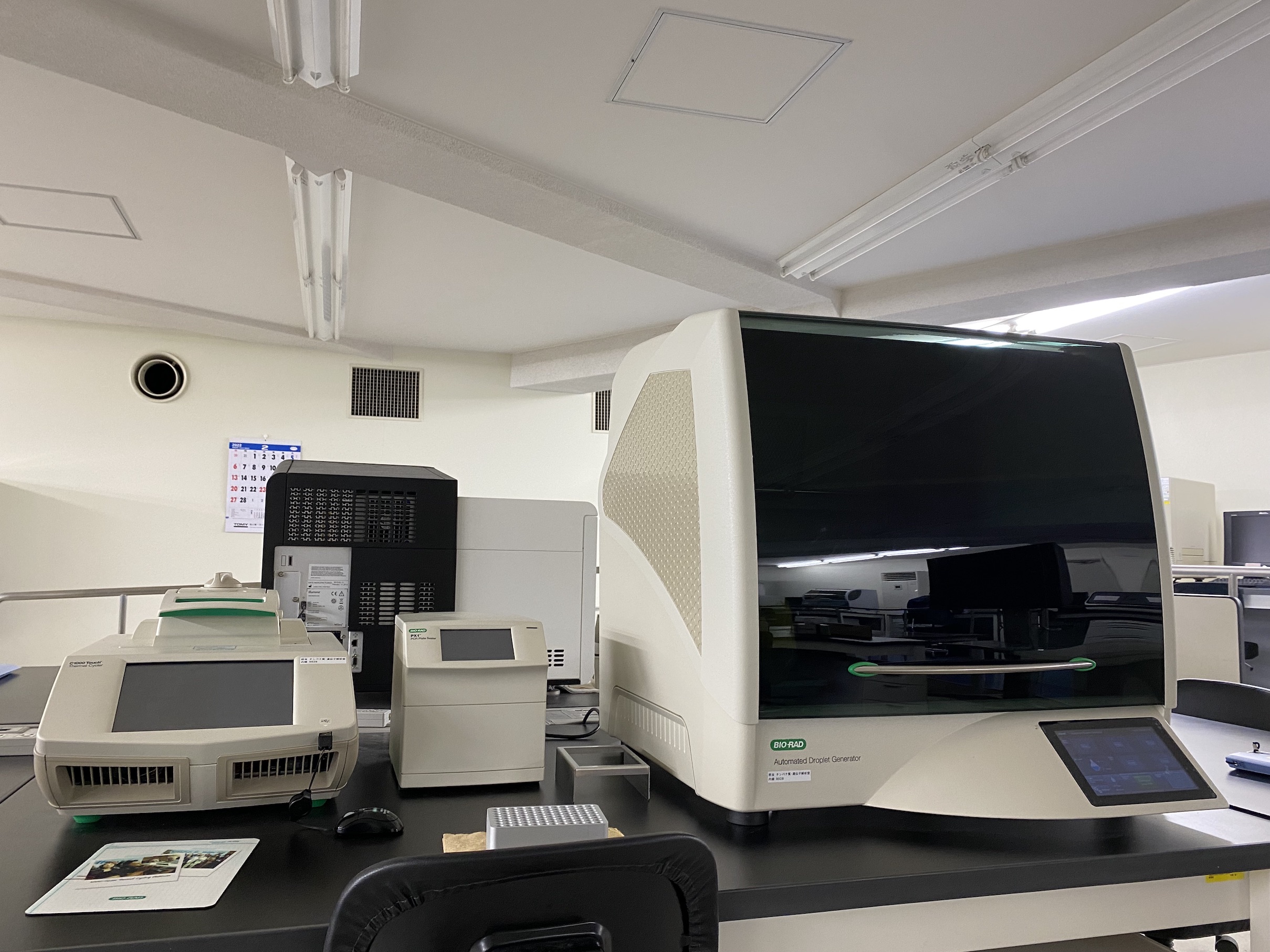

Droplet Digital PCR (BioRad) |
| Features and Specifications, etc. | An instrument for ultra-sensitive absolute quantification analysis of nucleic acids 【Droplet Digital PCR System】 - QX200 Automated Droplet Generator (AutoDG) - QX200 Droplet Reader - C1000 Touch Thermal Cycler Installed in March 2019. |
| Location | Central Research Center (Room 317, 3rd floor, University Building 1) |
| Remarks | - In the following cases, please contact the person in charge. Refilling ddOCR Droplet Reader Oil Refilling Automated Droplet Generation Oil for Probes Replacing the waste container of the QX200 Droplet Reader - If you need a DG32 Automated Droplet Generator Cartridge, please consult the person in charge. - Please ensure to book this equipment through the reservation system when using it. - When using the equipment, please be sure to fill out the logbook provided with it. |
| Equipment Manager Extension Number |
Tsukamoto (Laboratory for Proteins and Genes) 9928 |
| Usage Fee | 1,750 yen/run (probe) 1,500 yen/run (Eva green) 8 samples/run |
Equipment Photo
